Cibes a5000

Cibes A5000 is a smart and adaptable lift solution that adds comfort and real estate value to your building.

  • Simple & timeless design

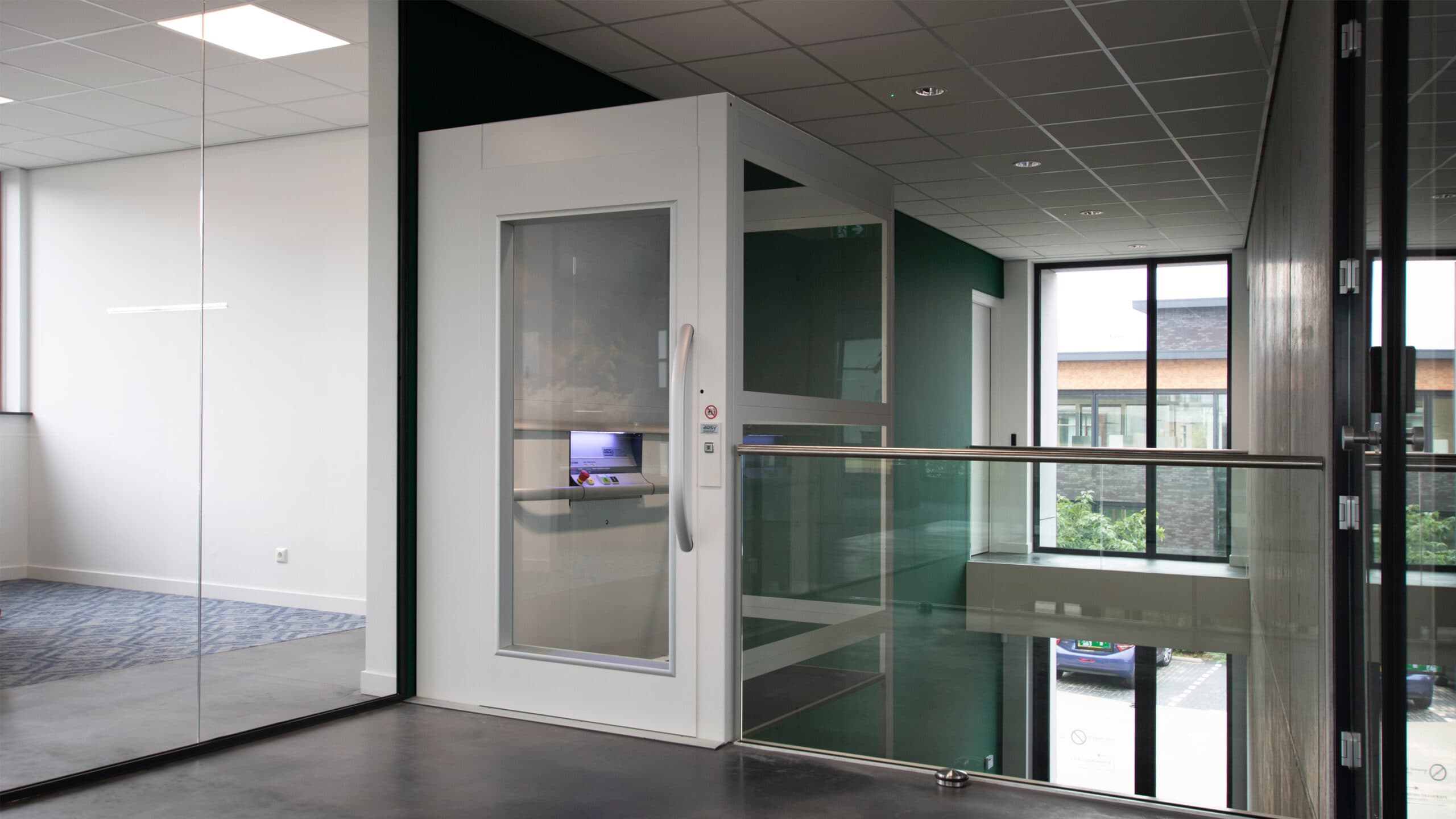

  • Wheelchair accessible platform lift
  • For private, public & commercial buildings
  • Minimal construction work
Cibes Lifts 34

Cibes a5000 platform lift

The Cibes A5000 platform lift is an all-inclusive lift concept, which is easy to integrate with new and existing buildings without major construction work. In addition, the timeless design blends in seamlessly with most architectural styles, thanks to our wide range of colour and material options.

Thanks to its flexibility in terms of sizes and design options, the Cibes A5000 is a great choice for shops, restaurants, offices and public buildings as well as for residential buildings.

PLATFORM LIFT CIBES A5000 (400/500 KG)

The lift is delivered in ready-made elements with everything you need for installation, including a lift shaft made of steel or glass panels. The Cibes A5000 does not need a concrete lift shaft.

Just plug the lift in, and it works. No complicated electrics.

The Cibes A5000 requires no lift pit and a headroom of only 2300 mm (standard doors). Even more impressive, the passenger platform constitutes 70% of the total footprint of the platform lift. Compared to conventional lifts, this is a really great use of space!

Our ready-made lift concept and space-saving design speed up the installation time and reduce the need for construction work. In addition, the Cibes A5000 has a very low structural impact on your building, compared to a conventional lift.

Machine roomless

All of the screw-driven machinery and electrics fit inside the double wall behind the passenger platform.

Cibes A5000 no liftpit needed

No lift pit needed

The Cibes A5000 lift can be installed directly on the floor with a small access ramp, or with a floor recess of just 50 mm.

Low headroom

A Cibes A5000 platform lift with standard doors requires a headroom of only 2300 mm.

LIFT SIZES & FLOOR CUT OUT

Technical information:

  • Rated load: 400/500 kg
  • Power supply: 1 × 230 VAC/3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, 3 × 2,5 mm²
  • Speed: max 0.15 m/s
  • Min headroom: 2300 mm (full-height door)
  • Lift pit: 50 mm or 0 mm with access ramp
  • Max travel: 20 m
  • Max number of stops: 6

Note: Shaft and cut out sizes may vary depending on lift configuration. For exact measurements, please ask Cibes for project specific drawings.

ASK FOR A FREE QUOTATION

PLATFORM SIZE – W x D SHAFT SIZE – W x D  CUT OUT SIZE – W x D
800 x 1217 mm 1160 X 1265 mm 1200 x 1380 mm
900 x1217 mm 1260 x 1262 mm 1300 x 1380 mm
1000 x 1267 mm 1360 x 1315 mm 1400 x 1430 mm
1000 x 1367 mm 1360 x 1415 mm 1400 x 1530 mm
1100 x 1367 mm 1460 x 1415 mm 1500 x 1530 mm
900 x 1467 mm 1260 x 1515 mm 1300 x 1630 mm
1000 x 1467 mm 1360 x 1515 mm 1400 x 1630 mm
1100 x 1467 mm 1460 x 1515 mm 1500 x 1630 mm
1100 x 1597 mm 1460 x 1645 mm 1500 x 1760 mm
1000 x 1967 mm 1360 x 2015 mm 1400 x 2130 mm
gustavelund conference hotel

Customer testimonial

Watch the video to discover how Gustavelund found the perfect accessibility solution for customers and staff in a Cibes platform lift with bespoke design. Installation by Cibes Lift Finland.

Discover project

panoramic lift design

PANORAMIC lift design

The lift shaft of the Cibes A5000 can be glazed on all sides, including the machinery side. Glass looks fantastic and preserves the light and airiness of the space.

Platform lift Cibes A5000

low ceiling on the TOP FLOOR?

Do you have a low headroom or a slanted ceiling on the top floor? No problem! The Cibes A5000 can be equipped with a 1100 mm high gate that fits under any ceiling.

*Calculated lifetime in the Life Cycle Assessment (LCA) of the Cibes A5000. The lifetime of individual lifts can be longer or shorter, depending on factors such as the frequency of use, the yearly number of maintenance visits, upgrades etc.
