All-inclusive lift concept
The lift is delivered in ready-made elements with everything you need for installation, including the lift shaft.
Platform lifts

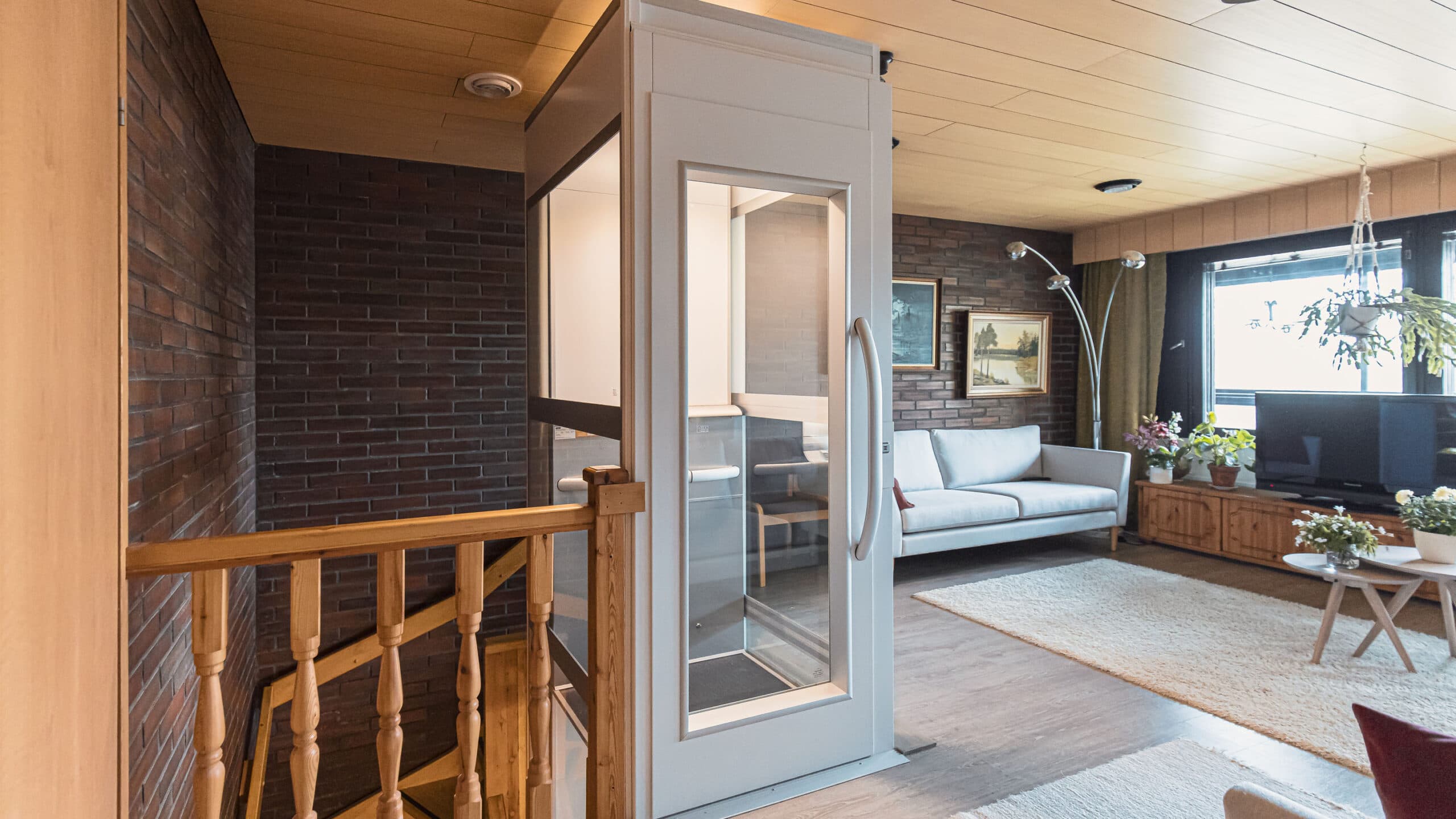

Cibes A4000
Compact and space-saving lift for your home
The Cibes A4000 is one of the most space-efficient and easy-to-install home lifts in the market. Thanks to the super compact design, this lift model fits into very small and narrow spaces, like the centre of your staircase. And because we deliver your Cibes A4000 as an all-inclusive concept in ready-made elements, your lift can be installed within just a few days, with very little construction work compared to conventional home elevators.
Contact us today for a free consultation!
Runs on household electricity
No need to rewire or adapt your electrics. The lift works with normal 1-phase and 3-phase electricity.
Space-efficient home lifts
The passenger platform is 60-70% of the total footprint of your lift. A great use of your space!
Installation in 2-3 days
Our ready-made lift concept speeds up the installation and minimizes the impact on your home.
All you need is 1m2
You do not think you have room for a lift at home? Maybe not for a conventional elevator, but if you choose a screw-driven home lift solution like ours, you probably do. The smallest size of the Cibes A4000 fits in just 1m2, which is about the same size as a wardrobe.
Perfect fit for your staircase
To fit into very small and narrow spaces, the Cibes A4000 has a very compact and slim design. This makes it possible to install your lift in very tight and limited spaces, like the middle of your staircase, for example. Placing the lift inside your staircase is a smart and cost-efficient choice that adds value to an often unused space and requires very little building work.
Is the Cibes A4000 an accessibility lift?
The Cibes A4000 is mainly a lift solution for enhanced everyday comfort, but it depends on what kind of accessibility needs you have. While this lift is too small for wheelchair users, the biggest sizes, 1000 x 930 and 1100 x 930 mm, are suitable for passengers using walkers.
EcoSilent drive
Use your lift day and night, as much as you want. Our EcoSilent drive system is an option that makes lift operation virtually soundless and up to 45% more energy-efficient.
Gate on the top floor
Our residential lifts are designed to adapt to your home, not the other way around. For example, if you have a sloped ceiling on the top floor, the lift may not fit under it. One solution is to adapt the top of the lift shaft to the sloped ceiling. Another smart and space-efficient solution is to opt for a 1.1-m-high gate.*
*According to European Safety Standards, gates are available for platform lifts with a maximum travel of 3 metres.
Panoramic glazing
The lift shaft of the Cibes A4000 is available with panoramic glazing on all sides, including the machinery side. Glazing looks fantastic and makes the room feel open and airy. It also makes the most of the light in dark spaces, such as stairwells.
Lift in a concrete shaftway
Installing your lift inside a concrete or masonry shaft makes it blend in seamlessly into your interior. The Cibes A4000 is also a great option if you are looking to replace your old elevator with a new and space-efficient lift solution.
Specifications and model details
Technical information
- Installation:Indoor
- Rated load:300 kg
- Power supply:1 × 230 VAC, 50 Hz, 16 A, min. 3 × 2,5 mm², 3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, min. 5 × 2,5 mm²
- Speed:Max 0.15 m/s
- Min headroom:2300 mm (full-height door)
- Lift pit:50 mm or 0 mm with access ramp
- Drive system:Screw and nut
- Max travel:15 m
- Max number of stops:6
- Lift controls:One touch (automatic drive) on landings, hold-to-run on platform
- Motor Power:2.2 kW
- Machine room:Integrated (MRL)
- Door configuration:Single access, open-through, adjacent
- Directives and standards:MD 2006/42/EC, EN 81-41
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Cibes A4000.
