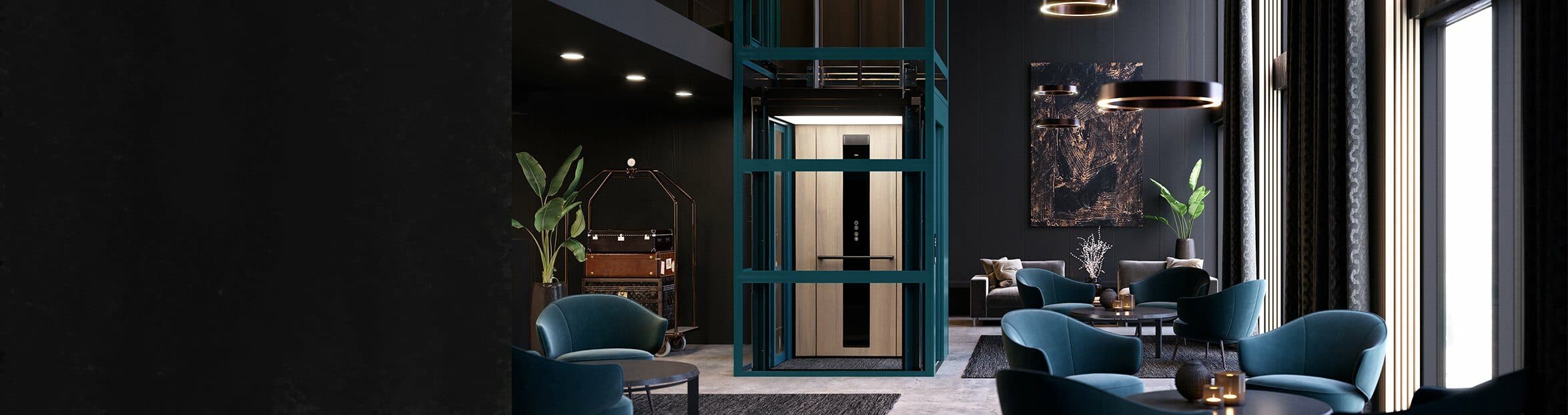

Space-efficient passenger lift
Cabin lifts

C1 Pure

Cabin Lift Cibes C1 Pure

Affordable, space-efficient and easy to install, cabin lift C1 Pure is a great lift solution for public, commercial and residential buildings.

  • Timeless Scandinavian design
  • Space-saving solution
  • Low construction costs

Ready-made lift concept

The lift is delivered in ready-made elements with everything you need for installation.

Reduced building costs

The lift is available with a ready-made shaft and requires minimal building adaptation for installation, resulting in reduced building costs.

Small footprint

Unlike most lifts, C1 Pure has no machinery above or beneath the lift, everything fits inside the shaft. This makes C1 Pure very space-efficient and easy to install.

Fast and easy installation

The ready-made lift concept can be installed in just a few days and requires minimal building preparation. All electrics are plug and play and the C1 Pure is available in versions prepared for 3×400, 3×230 and 1×230 VAC power supply.

Great Britain
Select...
Modular passenger lift in school building

The magic of glass

Glass is essential to modern architecture because it opens the space and brings an abundance of natural light into the room. The lift shaft, cabin and doors of the Cibes C1 Pure are available in glass.

Specifications and model details

Technical information

  • Installation:Indoor
  • Rated load:900 x 950 mm – 300 kg, 900 x 1200 mm – 375 kg, 900 x 1400 mm – 450 kg, 1100 x 1200 mm – 525 kg, 1100 x 1400 mm – 630 kg, 1100 x 1700 mm – 630 kg
  • Power supply:3 × 230 VAC /3 × 400 VAC, 50/60 Hz, 16 A, min. 5 × 2,5 mm², 1 × 230 VAC 50/60 Hz, 32 A, min. 3 × 6,0 mm²
  • Speed:max 0.15 m/s
  • Min headroom:Top floor 2500 mm
  • Lift pit:100 mm (120 mm if the floor is fitted with wood laminate or tiles)
  • Drive system:Screw and nut
  • Max travel:15 m
  • Max number of stops:6
  • Lift controls:One touch (automatic drive)
  • Motor Power:2.2 kW
  • Machine room:Integrated (MRL)
  • Door configuration:Single access, open-through, adjacent
  • Directives and standards:MD 2006/42/EC, applicable parts of EN 81-41, EN 81-20 and EN 81-70

Complete specifications and lift sizes

Check out the full Complete specifications and model details of C1 Pure.

View specifications
